Compact High-Precision CNC Lathe for Toolroom Applications

Precision and Efficiency in a Compact CNC Lathe

#

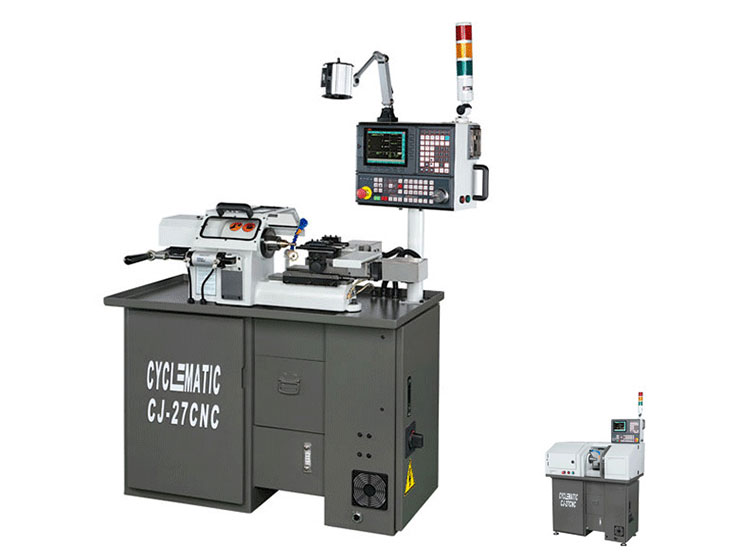

The CJ-27CNC CNC Toolroom Lathe is engineered to deliver both high speed and high precision in a compact form factor, making it an excellent choice for modern toolrooms and small-scale production environments.

Key Features

#

• Dovetail Bed Ways: The X and Z axes utilize dovetail bed ways, ensuring maximum stability and enabling deep turning of metal components with confidence.
• Gang Tool Block: Equipped with a gang tool block for tool holders, the CJ-27CNC significantly reduces tool changing time while maintaining high accuracy.
• Space-Saving Design: Its small and compact structure saves valuable workspace and enhances operational convenience.
• Air Collet Closer: The spindle comes standard with an air collet closer, streamlining workpiece clamping and release.

Visual Overview

#

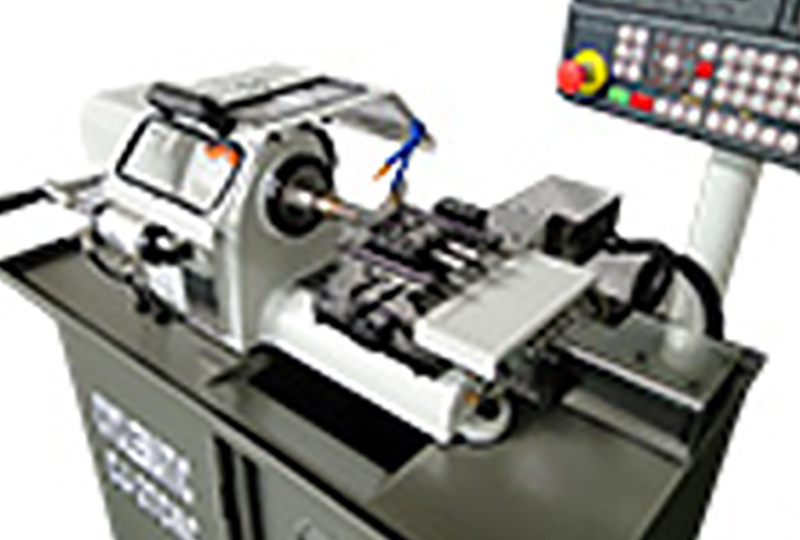

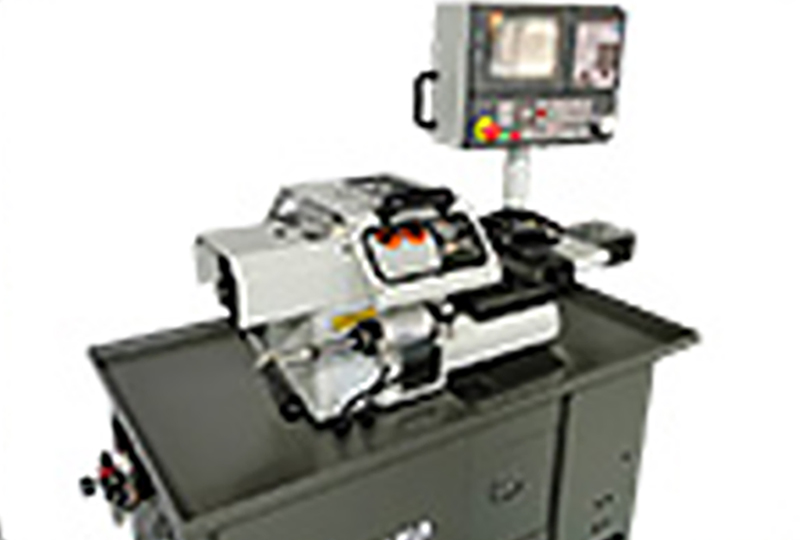

Tool Area and System

#

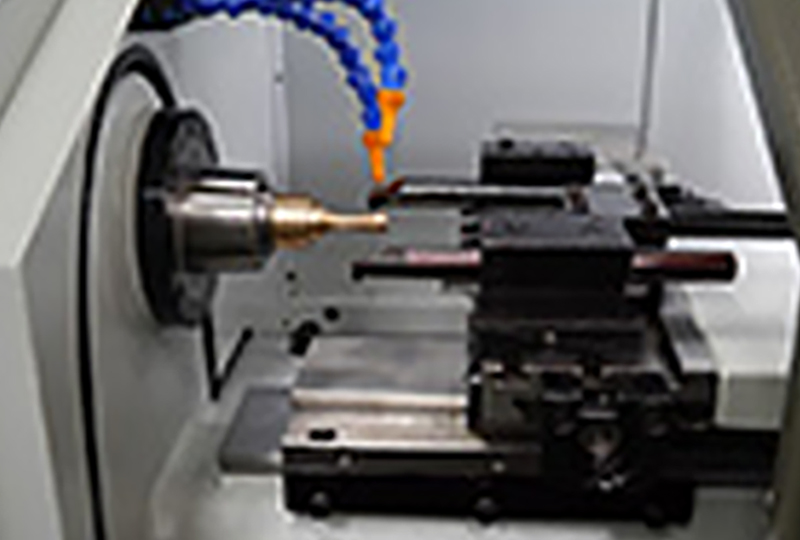

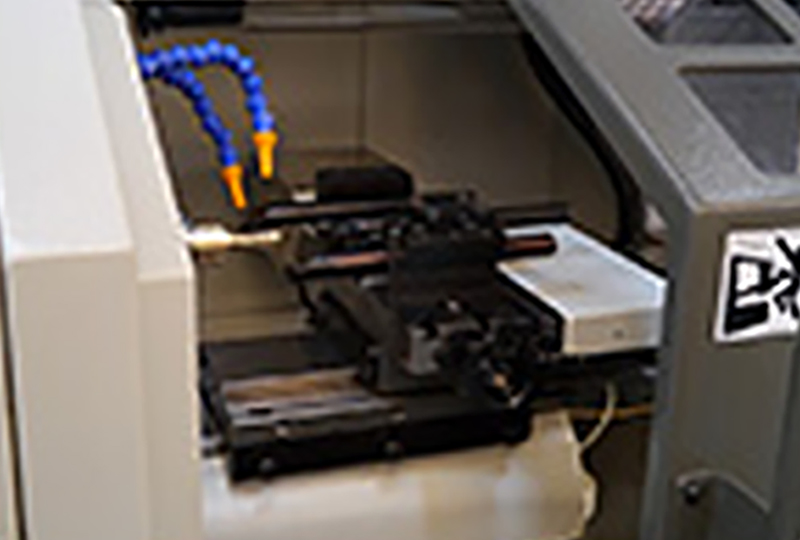

• The tool area is designed for accessibility and efficient workflow.
• The gang tool system supports rapid tool changes and precise machining.

Technical Specifications

#

Standard Equipment

#

• Gang Tool Block x 1
• Tool Holder LJ-3037-AA x 1
• Tool Holder LJ-3037-B x 1
• Air Collet Closer
• Coolant System
• Work Light

Optional Accessories

#

• Collet
• Collet Stop
• Expanding Collet
• Step Chuck
• 3-Jaw or 4-Jaw Chuck
• Additional Tool Holders

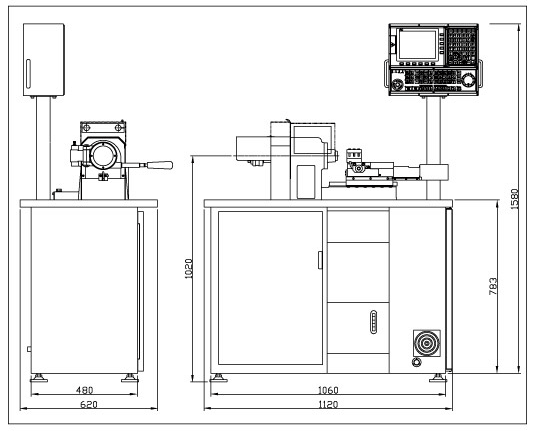

Outline Dimensions

#

Customization

#

In addition to the standard model, customized orders for CNC toolroom lathes are welcome to meet specific operational requirements.

For further details or to discuss customization, please contact us.
